描述

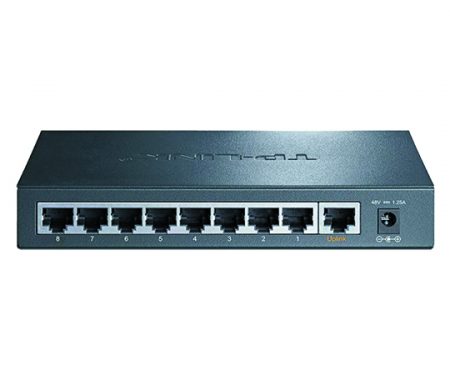

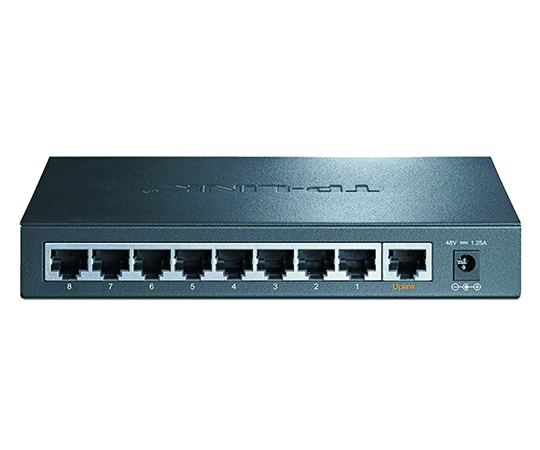

Product | 8 Port POE Power Switch(Internal 24V 5A power) |
Model | TL-SF1009P |
POE Port | 1 -8 ports support power network |
SFP Support | Non-support |
Power supply method | 4/5+ 7/8- |
Input Power | 110V-240V |
POE Whole Power | 48V 1.25A (120W) |
POE Power Transmission Distance | ≤200m |
Network Standard | IEEE 802.3 IEEE802.3u 802.3x 802.3af/at |
Network Medium | 10/100BASE-TX:5 class and above non shielded twisted pair |
Network Signal Distance | ≤100m |
Back bandwidth | 1.6Gbps |
Forwarding Mode | Store forward |
Forwarding Rate | 10BASE-T:14880PPS/port 100BASE-tx 14800pps/port |
Mac Address | address table 1K |
Port Function | Power priority mechanism ,fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
LED Indicator | Each port occupied 1 LINK/ACT.100Mbps,
Power indicator |
Working Environment | Working temperature -10°– 55°C |
Weight | 1.991kg |
Size | 270×180×45mm |
